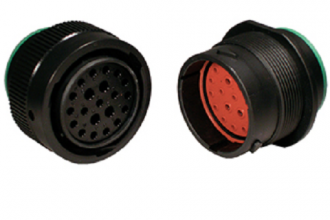

The HDP20 Series is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. HDP20 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
Here are some of the common part numbers in the HDP20 series. Several additional connectors may be available.
Shell Size Position |
Series |
Plug Standard Dia. Seal |
Receptacle Standard Dia. Seal |
Plug Reduced Dia. Seal |
Receptacle Reduced Dia. Seal |
| 18-6 | HDP20 | HDP26-18-6SN | HDP24-18-6PN | HDP26-18-6SE | HDP24-18-6PE |
| 18-8 | HDP20 | HDP26-18-8SN | HDP24-18-8PN | HDP26-18-8SE | HDP24-18-8PE |
| 18-14 | HDP20 | HDP26-18-14SN | HDP24-18-14PN | HDP26-18-14SE | HDP24-18-14PE |
| 18-20 | HDP20 | HDP26-18-20SN | HDP24-18-20PN | HDP26-18-20SE | HDP24-18-20PE |
| 18-21 | HDP20 | HDP26-18-21SN | HDP24-18-21PN | HDP26-18-21SE | HDP24-18-21PE |
| 24-7 | HDP20 | HDP26-24-7SN | HDP24-24-7PN | HDP26-24-7SE | HDP24-24-7PE |
| 24-91- P064 | HDP20 | HDP26-24- 91SN-P064 | HDP24-24- 91PN-P064 | – | – |
| 24-9 | HDP20 | HDP26-24-9SN | HDP24-24-9PN | HDP26-24-9SE | HDP24-24-9PE |
| 24-14 | HDP20 | HDP26-24-14SN | HDP24-24-14PN | HDP26-24-14SE | HDP24-24-14PE |
| 24-16 | HDP20 | HDP26-24-16SN | HDP24-24-16PN | HDP26-24-16SE | HDP24-24-16PE |
| 24-18 | HDP20 | HDP26-24-18SN | HDP24-24-18PN | HDP26-24-18SE | HDP24-24-18PE |
| 24-19 | HDP20 | HDP26-24-19SN | HDP24-24-19PN | HDP26-24-19SE | HDP24-24-19PE |
| 24-21 | HDP20 | HDP26-24-21SN | HDP24-24-21PN | HDP26-24-21SE | HDP24-24-21PE |
| 24-23 | HDP20 | HDP26-24-23SN | HDP24-24-23PN | HDP26-24-23SE | HDP24-24-23PE |
| 24-29 | HDP20 | HDP26-24-29SN | HDP24-24-29PN | HDP26-24-29SE | HDP24-24-29PE |
| 24-31 | HDP20 | HDP26-24-31SN | HDP24-24-31PN | HDP26-24-31SE | HDP24-24-31PE |
| 24-33 | HDP20 | HDP26-24-33SN | HDP24-24-33PN | HDP26-24-33SE | HDP24-24-33PE |
| 24-35 | HDP20 | HDP26-24-35SN | HDP24-24-35PN | HDP26-24-35SE | HDP24-24-35PE |
| 24-47 | HDP20 | HDP26-24-47SN | HDP24-24-47PN | HDP26-24-47SE | HDP24-24-47PE |
TE Connectivity’s industrial and commercial transportation connectors are available in a variety of materials, shapes, wire gauge options, cavity counts and mounting options to suit a wide range of applications. TE’s reference guide to TE Connectivity’s industrial & commercial transportation connectors and accessories.
http://www.te.com/connector-selector
Browse all DEUTSCH Connectors >
DEUTSCH connector product guide for industrial and commercial vehicles >
Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
6-22 AWG
2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangements
In-line or flange mount
Circular, aluminium housing
Coupling ring for mating
